Solution Graphics



Honda CBR600F4i
2001-2006

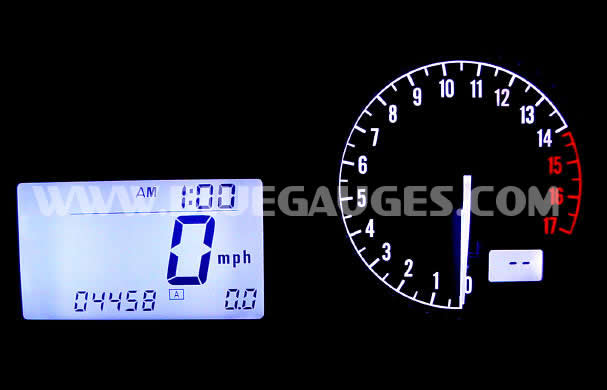

#600F401

All white ($70)

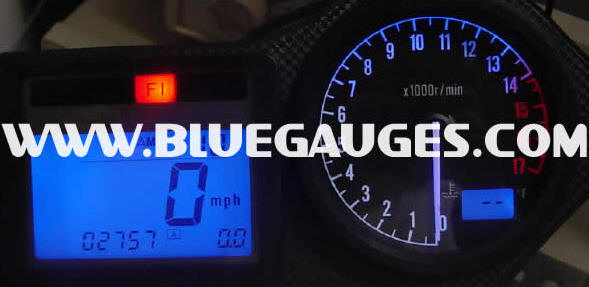

#600F404

White/blue/red tachometer
and blue LCD's ($70)

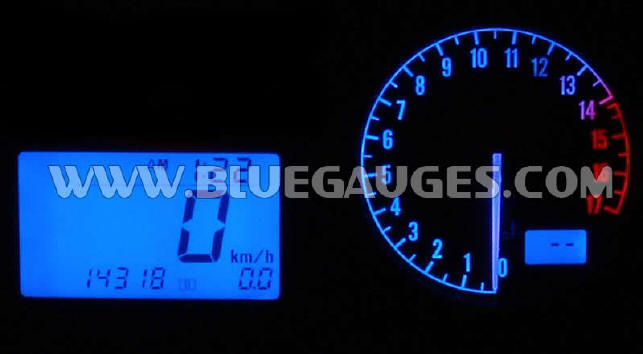

#600F406

All blue with red under the redline ($70)


#600F402

White tach with blue LCD's ($70)

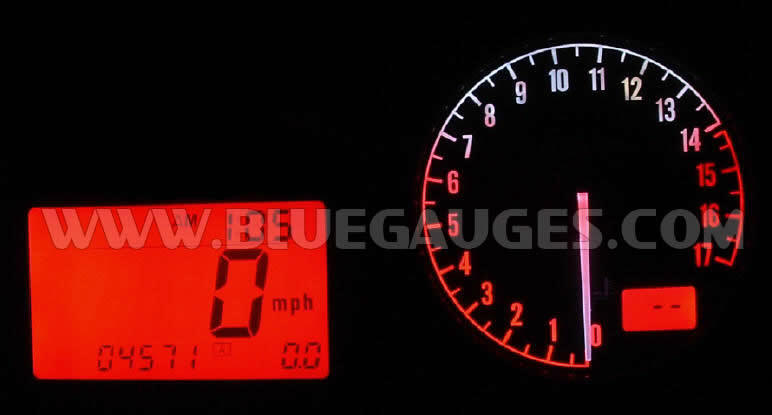

#600F408

Red/white/red tach and red LCD's ($60)

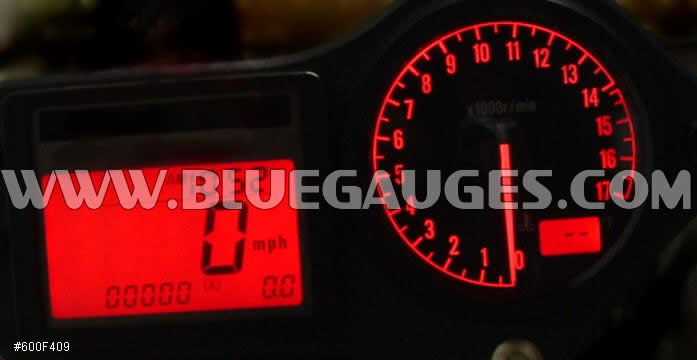

#600F409

All red ($60)

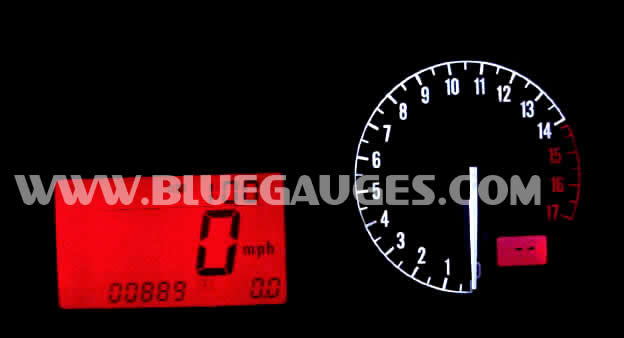

#600F403

White tach and red LCD's ($60)

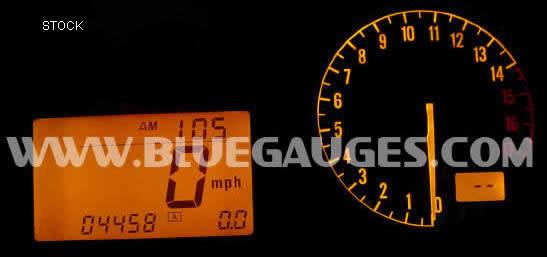

Stock Color

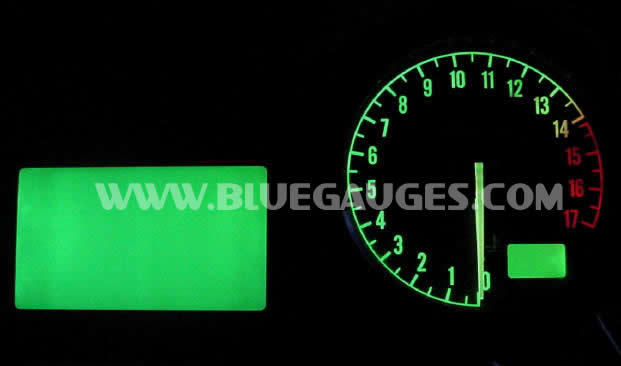

#600F411

All green with red under the redline. ($70)





All prices include return shipping by priority mail
(express mail is optional) and "Plug & Play" installation of the
faceplate directly onto the circuit board inside the gauges.

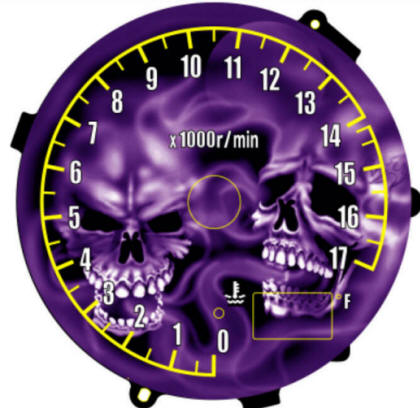

Custom Faceplates

Have anything you want on a 100% custom faceplate (Email us for more info)

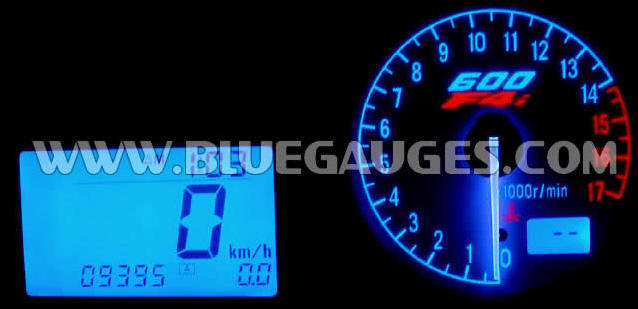

#600F412

All blue lighting with "reverse" style
illumiglo faceplate ($145)


#600F413

All red with "reverse" style
illumiglo faceplate ($125)

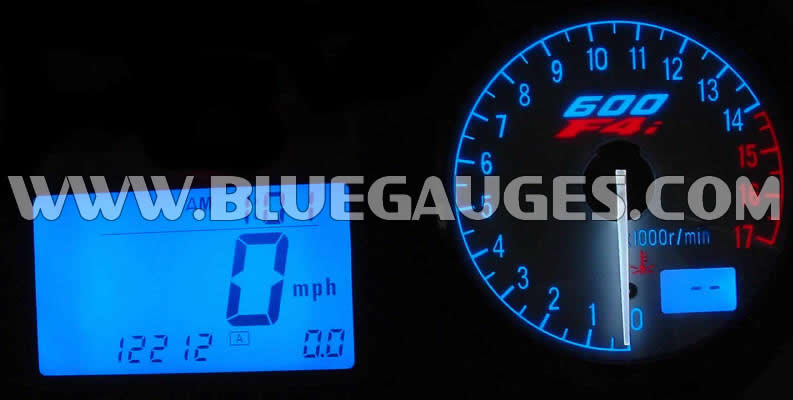

#600F415

Blue LCD's with white under tach
(for a white needle) and a "reverse" style
illumiglo faceplate ($145)

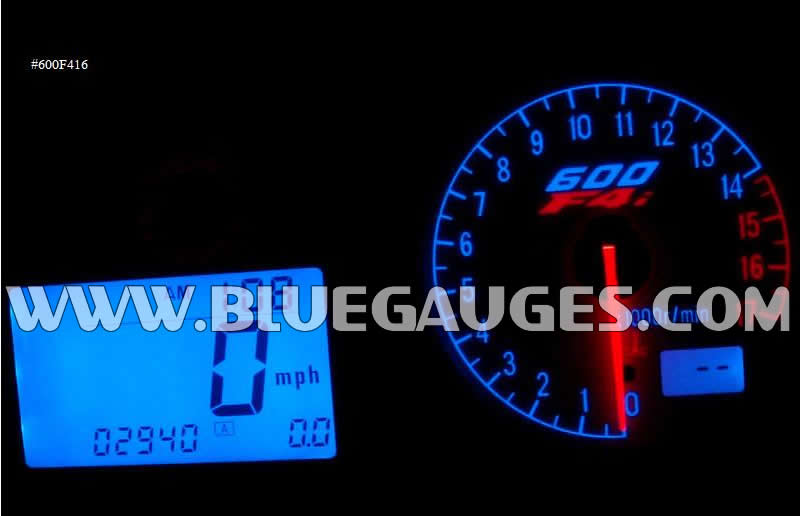

#600F416

Blue LCD's with red under tach
(for a red needle) and a "reverse" style
illumiglo faceplate ($145)

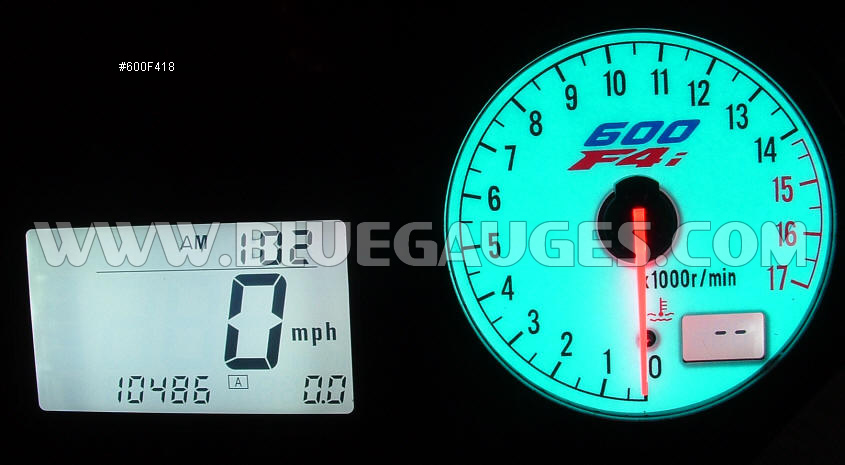

#600F418


White LCD's, red under needle, and a "standard" style illumiglo faceplate ($145)

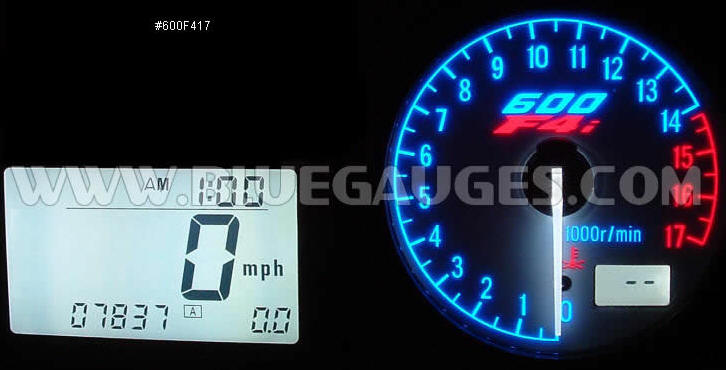

#600F417

All white lighting and a "reverse" style
illumiglo faceplate ($145)


#600F414

Daytime photo of illumiglo faceplate ($75)

*All Illumiglo faceplates are white*



  • We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find equal LED's without a huge minimum purchase.
  • Military quality soldering.
  • No risk of damaging your gauge cluster.
  • Your choice of colors.
  • Colors can be combined for different effects.
  • How to remove your F4i cluster:
    • Remove the mirrors and headlight fairing.

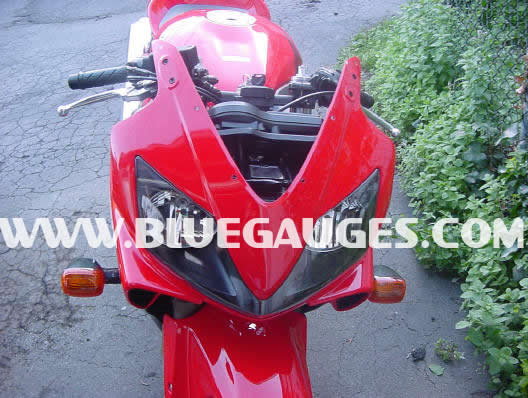

      • Mirrors: (PHOTO)
        • 4 Allen head screws (2 on each mirror)
        • NOTE: It is not necessary to remove windscreen.

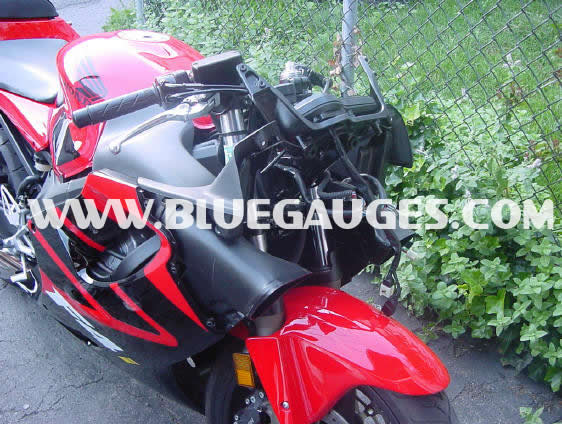

      • Headlight Fairing: (PHOTO)
        • 8 Allen head screws to remove the headlight fairing: (3 on each side of bike near turn signals and 1 on each side of the gauges.)

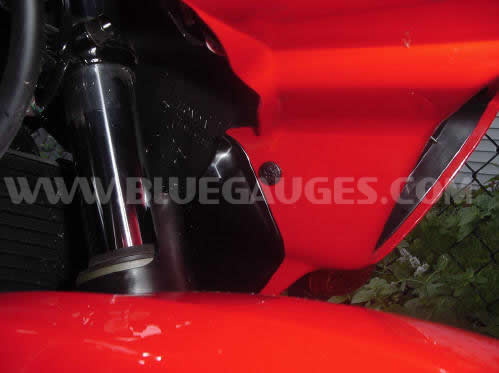

        • 2 plastic clips from underside near forks. (PHOTO)
        • After it is partially off, disconnect 1 large wiring harness connector to remove the front fairing from the bike.

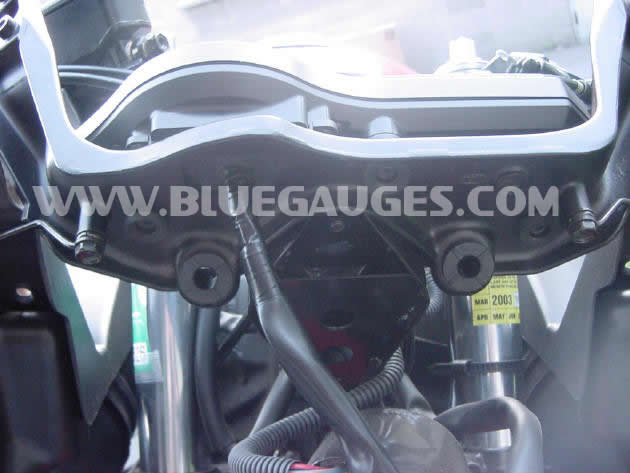

    • Remove the 3 Phillips-head screws from the back side of the gauges. NOTE: Do not attempt to unscrew the bolt on the front of the gauges. It is for cosmetic purposes only. It does not come apart. (PHOTO)
    • Pull the whole cluster forward out of the shock mounts. (towards you assuming you are sitting on the bike)
    • Depress the tabs on the two wiring harness connectors from the backside of the gauges and disconnect wiring from the bike to the gauges to complete disassembly.
      • Note: I have not tested this, but I have heard that the F4i will not start when the gauges are disconnected.
    • Shipping Info


Note: This is a service, you must package and ship the gauge cluster to us to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (
Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.

Other options:



Mileage Correction Available!

(More Information)



Illumiglo Faceplates Available!

(More Information)



Express Mail Shipping Upgrade

(Priority mail return shipping is included in the price.
This option is only if you want it shipped faster.)

$25.00 (Usually overnight)
