Solution Graphics




Kawasaki
ZX-6R (2003-2006)
ZX-6RR (2003-2006)
Z1000 (2003-2006)
Z750S (2005-2006)


2005 ZX-6R
http://canadamotoguide.com/images/stories/archives/CMG_test_rides/05_Bandit650_Z750/BigP/Z750_gauges_bg.jpg
Z750
http://image.motorcyclistonline.com/f/8862603+w750+st0/lg+2003_kawasaki_z1000+gauge_view.jpg

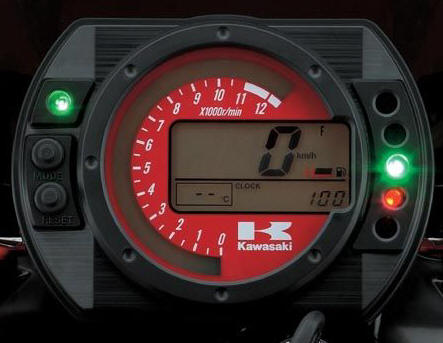

03-06 Z1000

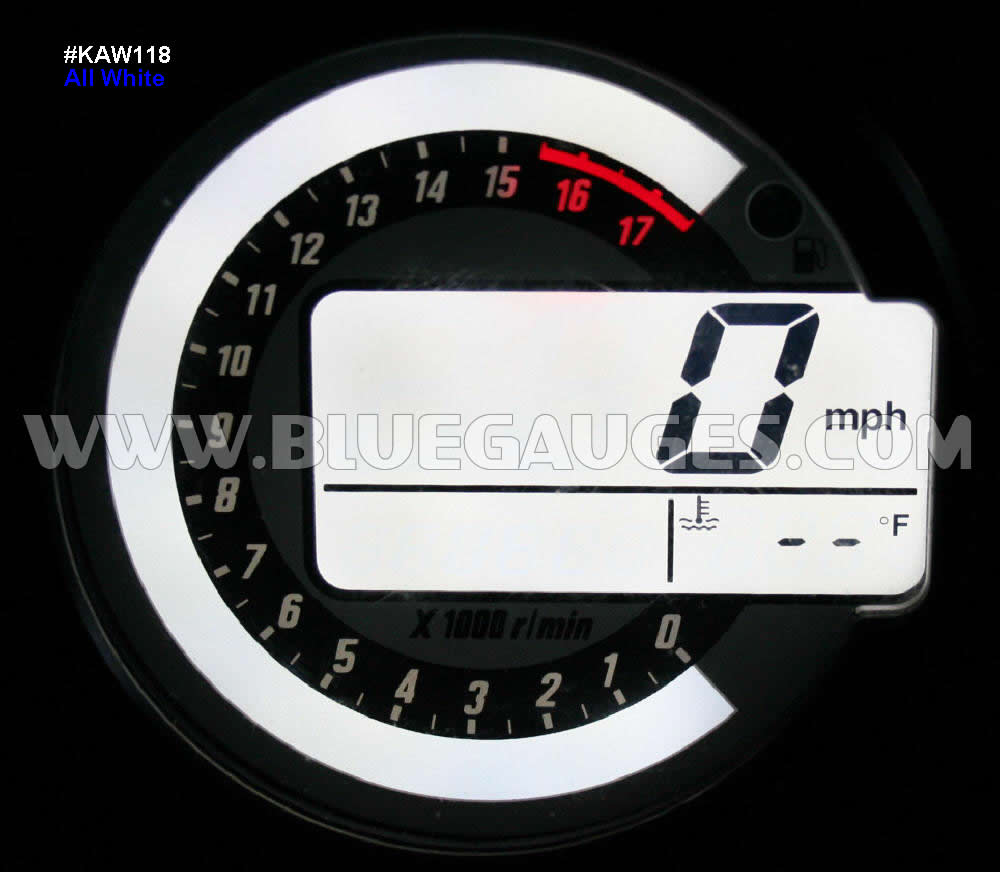

#KAW118

All White ($65)

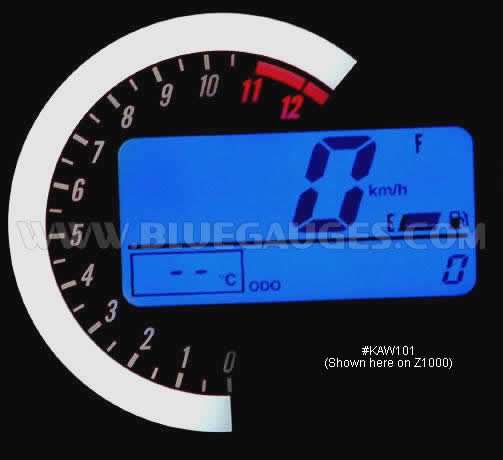

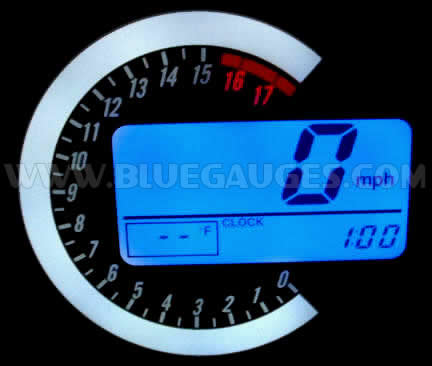

#KAW101


White tach and blue speedo. ($65)

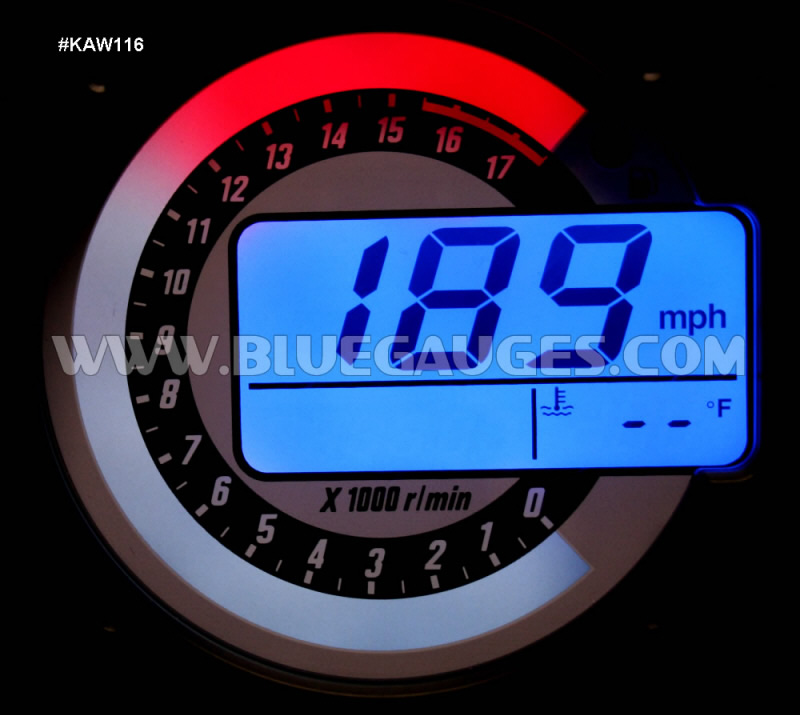

#KAW116

White tach and blue speedo
with red redline. ($65)
#KAW115

All blue with red for redline ($65)

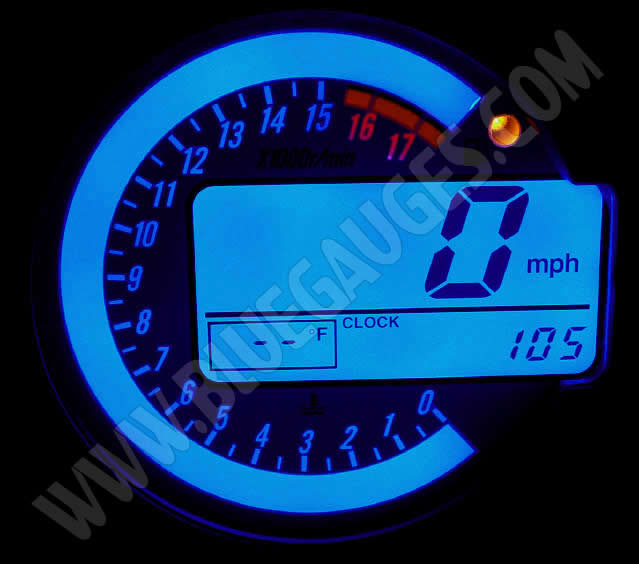

#KAW103

All blue ($65)

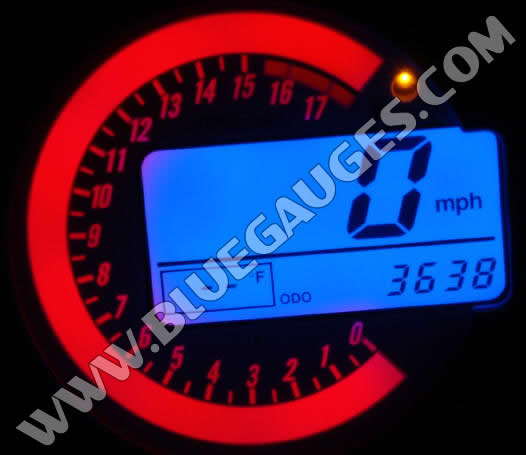

#KAW104

Red tach and blue speedo. ($65)

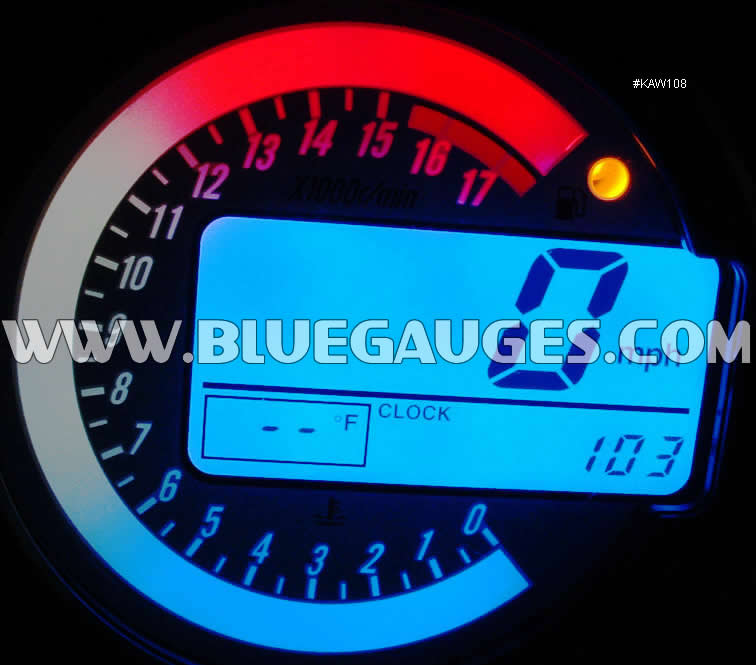

#KAW108

Blue/White/Red tach and
blue Speedo.($65)

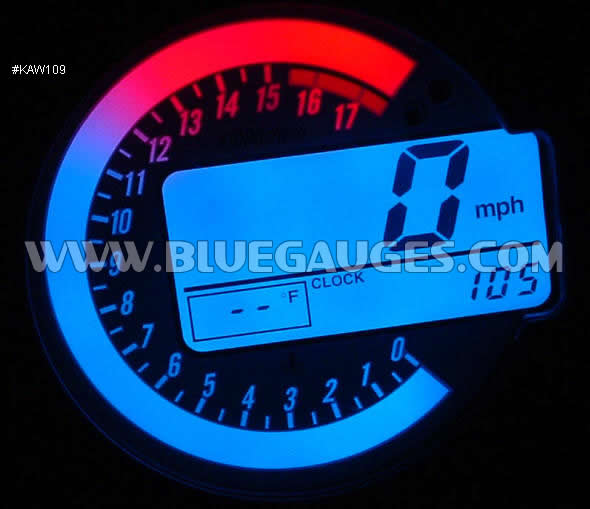

#KAW109

Blue/Red tach and
blue Speedo. ($65)

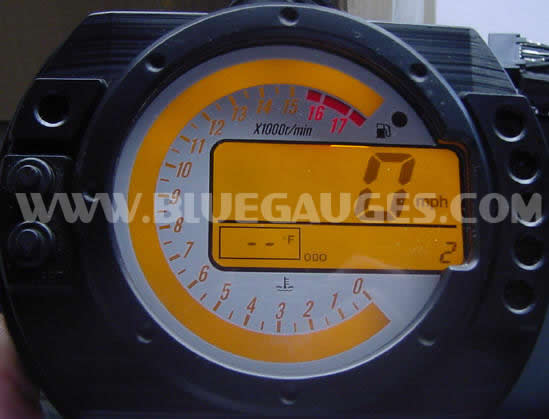

2003-2004 ZX-6R
(Factory Original Color)



All blue-green lighting ($65)

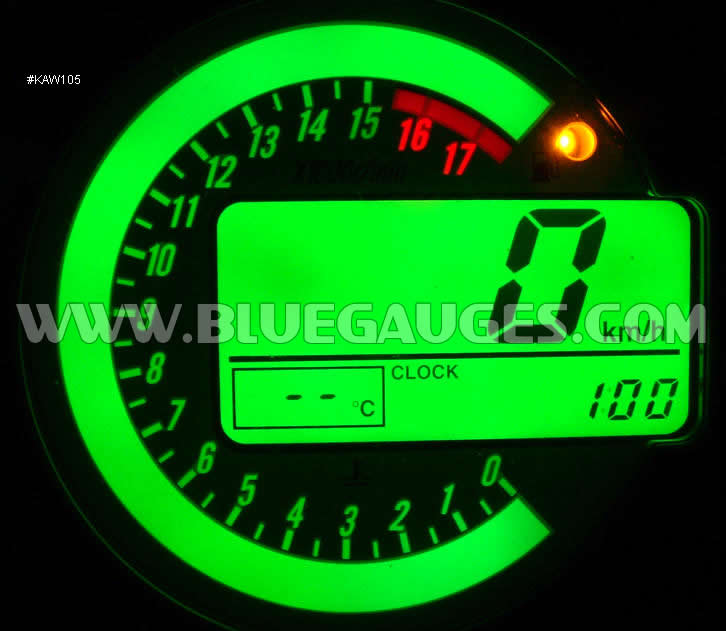

#KAW105

All green ($65)

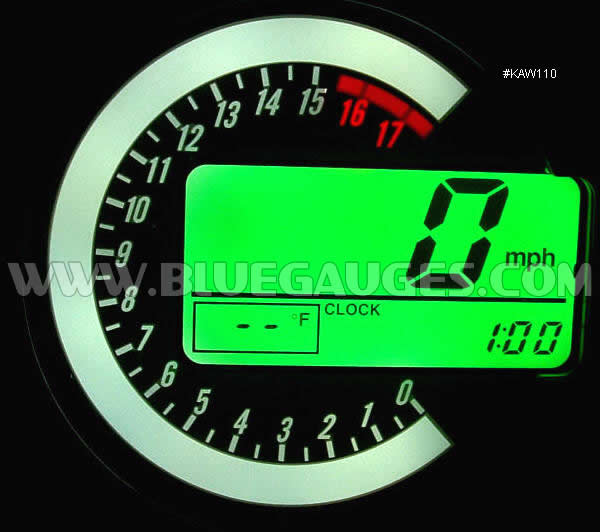

#KAW110

White tach, green LCD ($65)

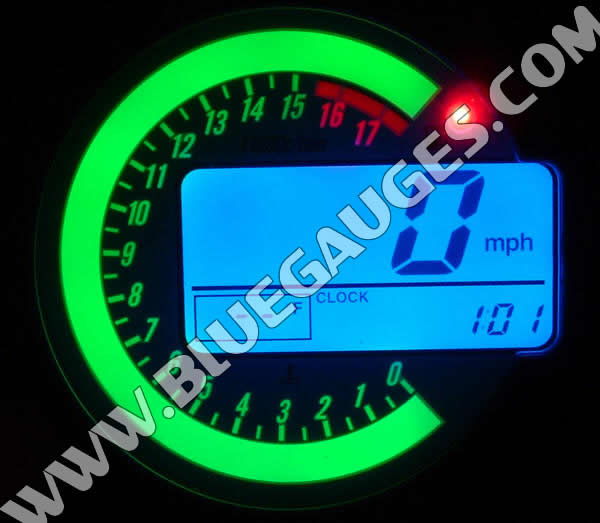

#KAW107

Green tach, blue LCD ($65)

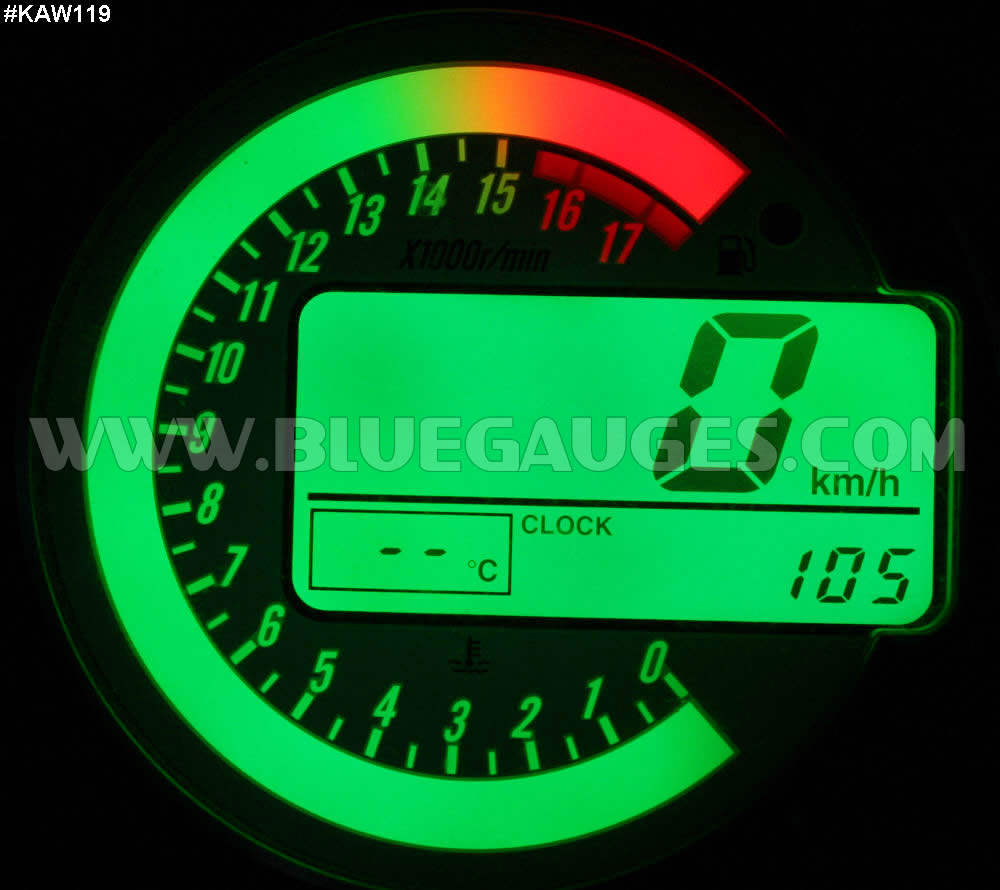

#KAW119

All green with red redline ($65)

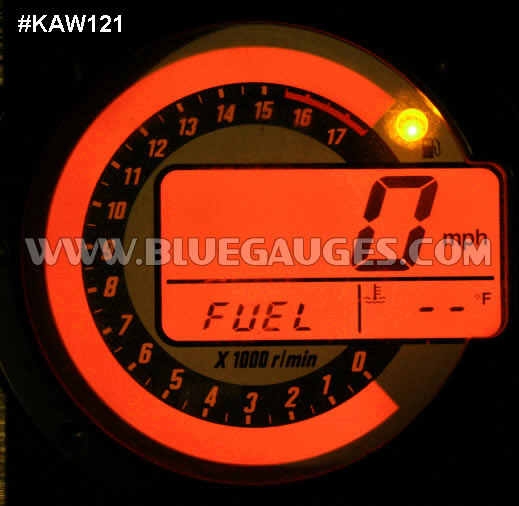

#KAW121

All Orange ($65)

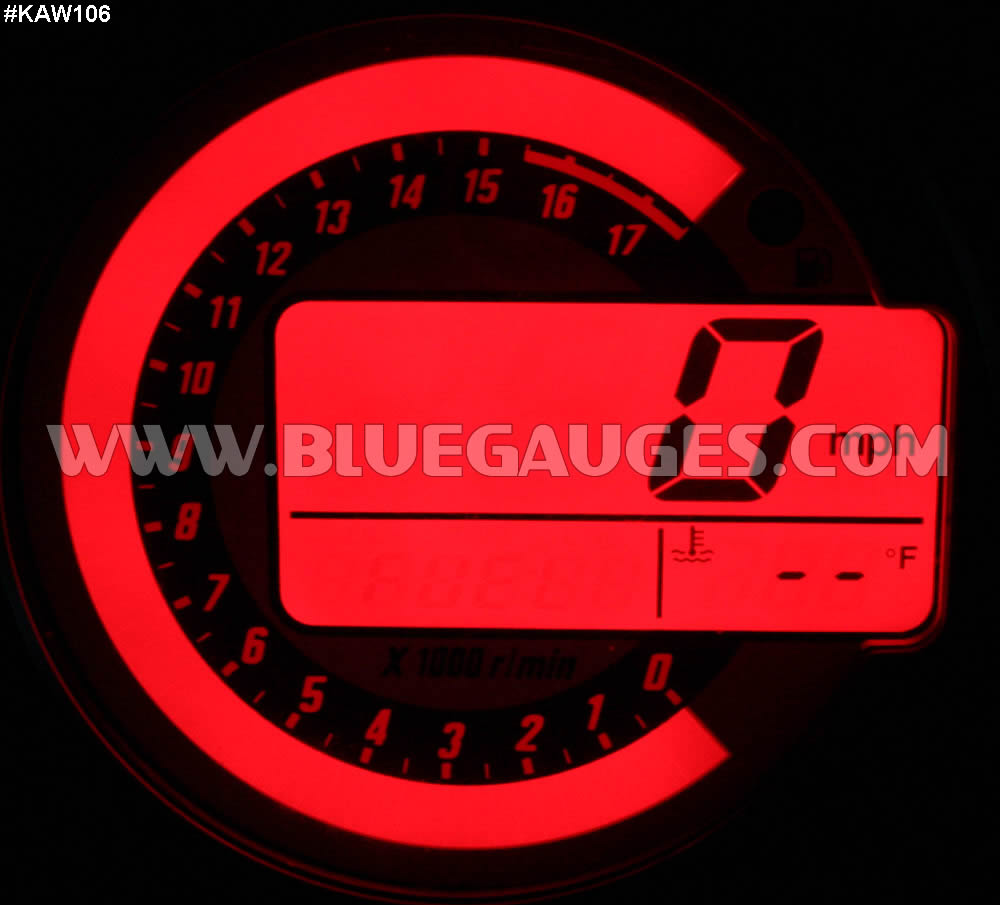

#KAW106

All red ($65)
#KAW104

Red tach and blue speedo. ($65)

Note: Options below are not available for Z750 or Z1000 (There are no direct fit faceplates available for those models)

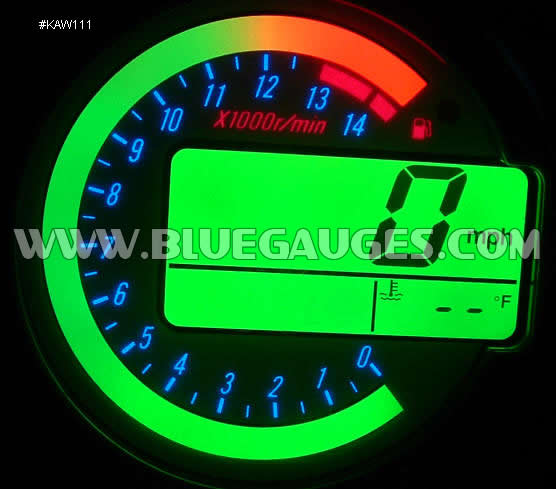

#KAW111

Green tach and speedo with red redline and reverse style illumiglo faceplate.
(faceplate is white in daytime)
($120)

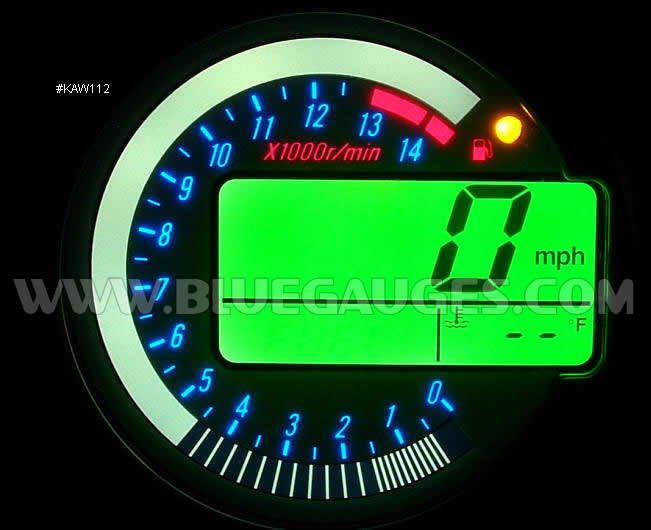

#KAW112

White tach and green speedo and
reverse style illumiglo faceplate.
(faceplate is white in daytime)
 ($120)

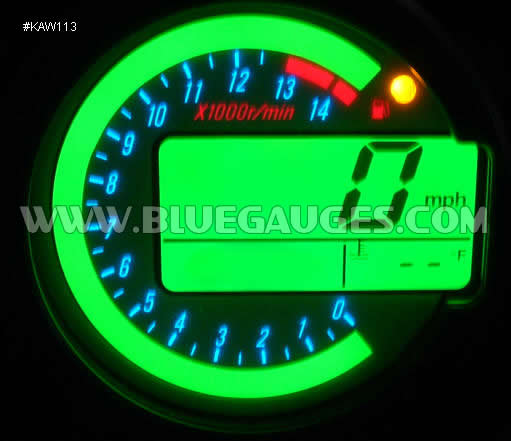

#KAW113

All green lighting and reverse
style illumiglo faceplate.
(faceplate is white in daytime)
 ($120)

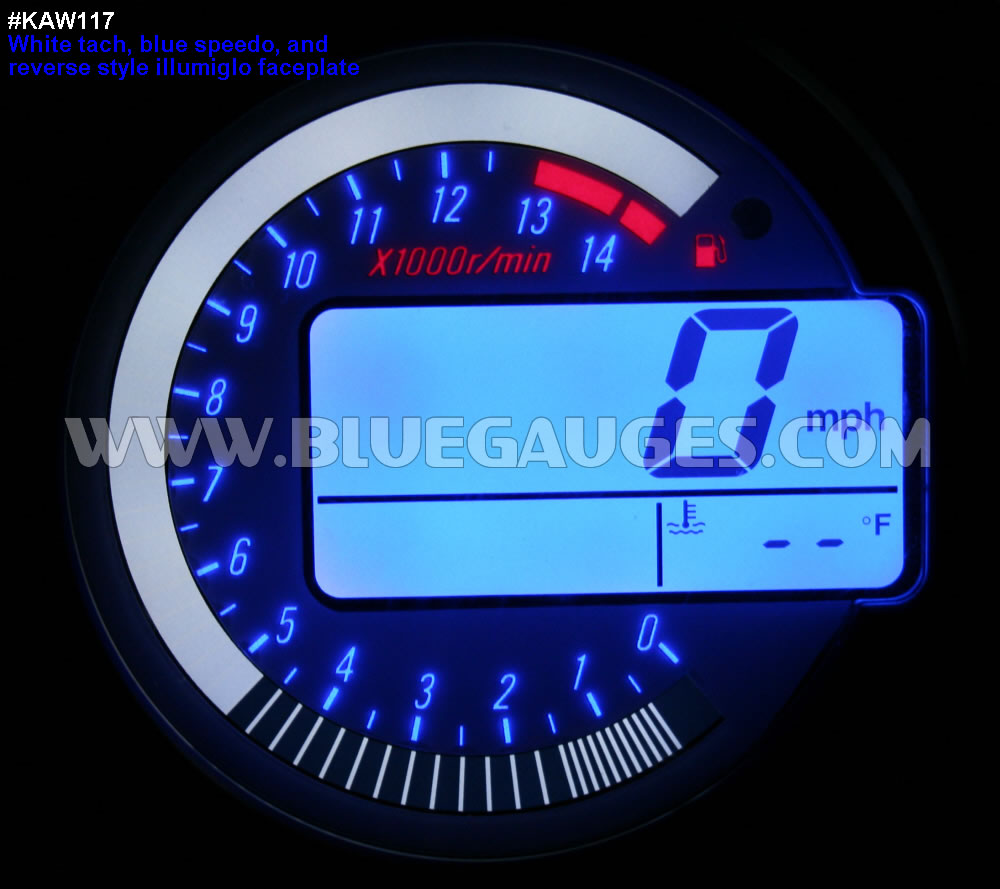

#KAW117
KAW117

White tach, blue speedo and
reverse style illumiglo faceplate.
(faceplate is white in daytime)
 ($120)
  • We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find equal LED's without a huge minimum purchase.
  • Lifetime warranty on all backlighting for as long as you own the vehicle.
  • Military quality soldering
  • No risk of damaging your gauge cluster
  • Your choice of colors.
  • Colors can be combined for different effects. (This gauge has minor color bleeding in the corners of the speedo on multicolor combinations that cannot be prevented. Please look closely at the pictures above. Some color combinations are worse than others.)
  • Prices include return shipping within USA via Priority Mail.
  • Additional Info:
    • Gauge removal instructions.

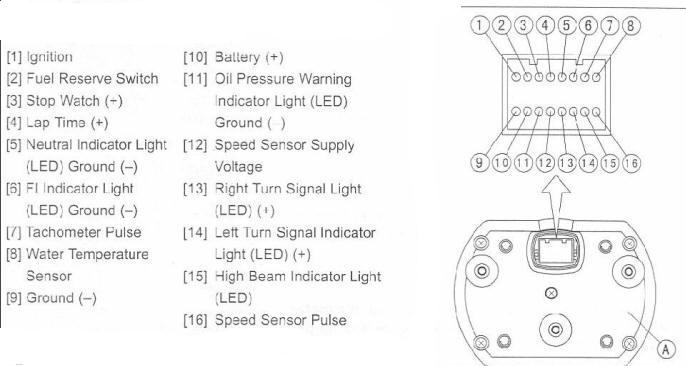

    • ZX-6R Gauge wiring diagram

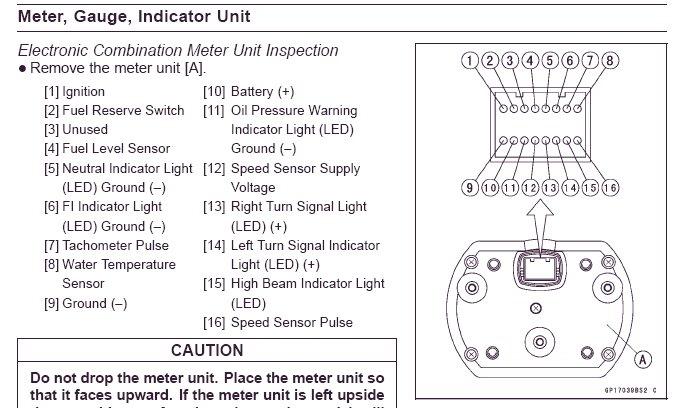

    • Z1000 Gauge wiring diagram
    • On US spec gauges:
      • To change from km/h to mph, press and hold the mode button, then repeatedly press the reset button until your desired choices are displayed. There are 4 choices to choose from.
        (C and mph, F and mph, C and km/h, F and km/h)
      • (Following info may not be exactly accurate - please help if we made a mistake)
        04-05 ZX-10R Redline = 13-14.5k  (Grey faceplate stock)
        03-04 ZX-6R Redline = 15.5-17.5k (White faceplate stock)
        05-06 ZX-6R Redline = 15.5k-17.5k (White/Grey faceplate stock)
        03-06 ZX-6RR Redline = 16.5-17.5k
        03-06 Z1000 Redline = 11-12.5k  (Red faceplate stock)
        04-06 Z750 Redline = 11.5-13k (Red faceplate stock)
    • Canadian Spec gauges:
      • Shows only C and km/h. We can program these to US spec gauges which are switchable, but MPH is default setting when first plugged in.
    • Top indicated speed = 189 mph or 299 km/h

Note: This is a service, you must package and ship the gauge cluster to us to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (
Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.

Other options:


High Beam Indicator
$5.00
Select color

Turn Signal Indicator
$5.00
Select color

Low Fuel Indicator
$5.00 (Stock=Yellow)
Select color

Shift Light Indicator
$5.00
Select color

FI Indicator
$5.00
Select color

Oil Indicator
$5.00
Select color

Neutral Indicator
$5.00
Select color
Programming / Mileage Correction Available!

(More Information)
Illumiglo Faceplates Available!

(More Information)

Express Mail Shipping Upgrade

(Priority mail return shipping is included in the price. This option is only if you want it shipped faster.)

$25.00 (Usually overnight)
