2003-2006 Honda CBR600RR



Note: This is a service, you must package and ship the gauge cluster to us
to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (
Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.



#600RR1

All White ($70)

#600RR7

White tachometer and blue LCD's ($70)

#600RR14

White tachometer and red LCD's ($70)

#600RR18

Red tachometer and white LCD's ($70)

#600RR2

All Blue ($70)
#600RR13

Blue tachometer and white LCD's ($70)

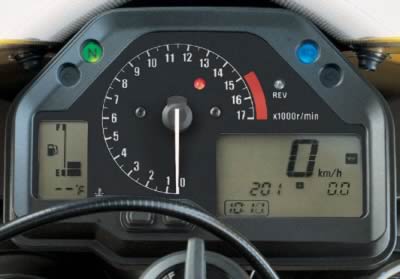

(Factory Original Color)



#600RR4

All Red ($70)

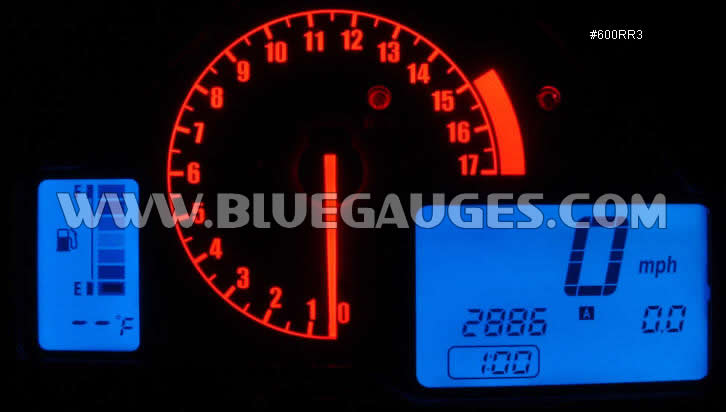

#600RR3

Red tachometer and blue LCD's ($70)



All Blue-Green ($70)


All Orange ($70)

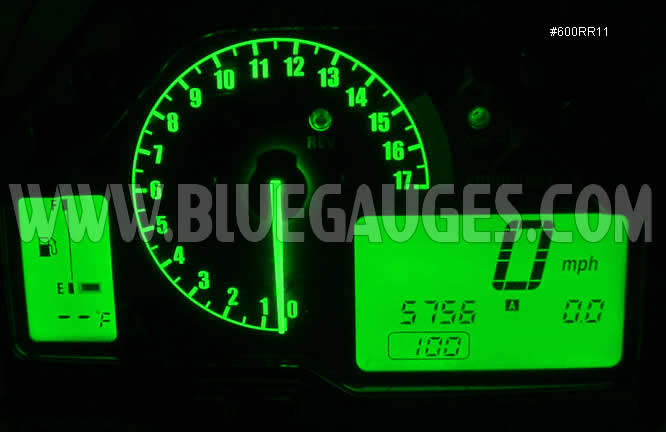

#600RR11

All Green ($70)


All prices include return shipping by priority mail
(express mail is optional) and "Plug & Play" installation of the
faceplate directly onto the circuit board inside the gauges.

White Faceplate Combos:

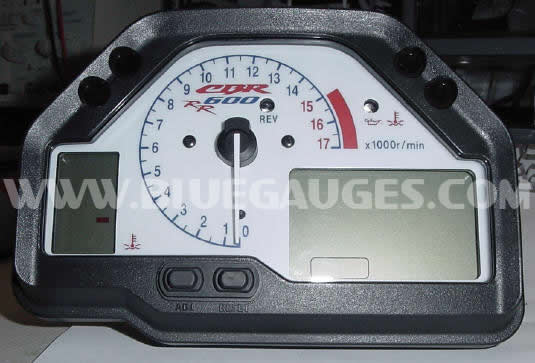

Daytime photo of illumiglo faceplate.

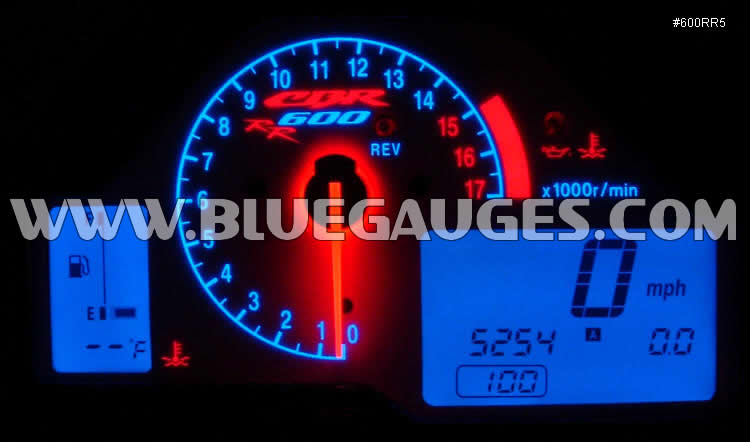

#600RR5
Click here to add #600RR5 to cart.
Blue LCD's and red under the
tachometer (to give it a red needle) and
a "reverse" illumiglo faceplate
($125)

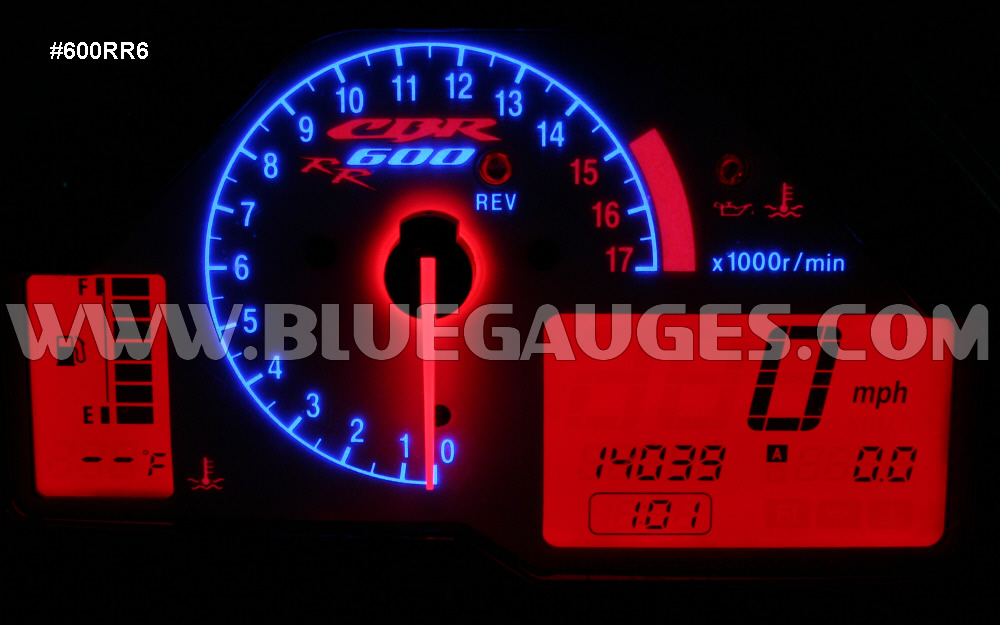

#600RR6

All red lighting with a "reverse"
style illumiglo faceplate
($125)

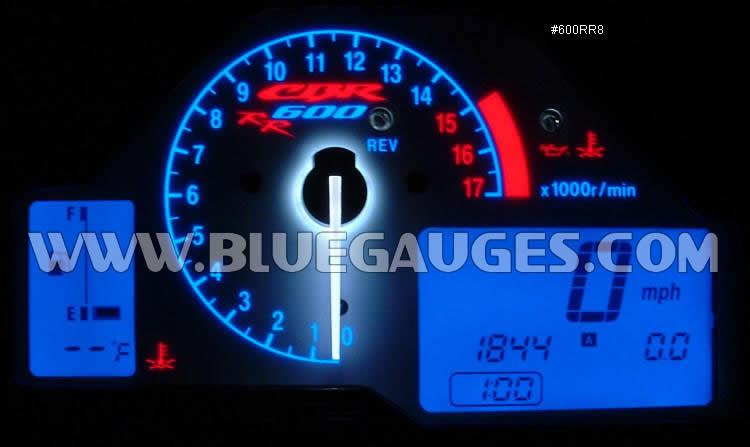

#600RR8
Click here to add #600RR8 to cart.
Blue LCD's and white under the tachometer (to give it a white needle) and
a "reverse" style illumiglo faceplate
($125)

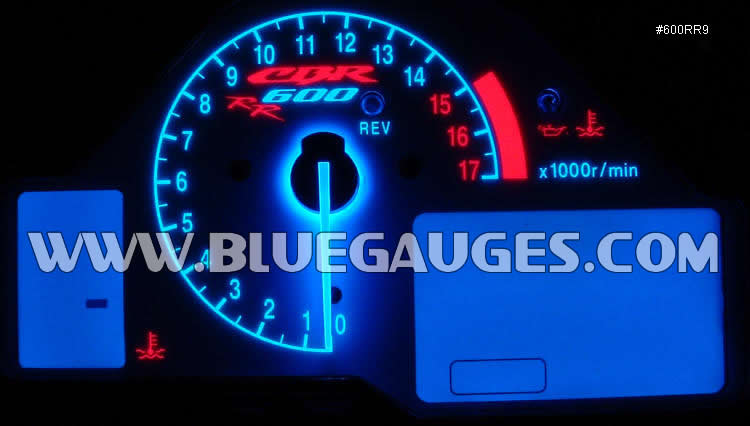

#600RR9
Click here to add #600RR9 to cart.
All blue lighting and a "reverse"
style illumiglo faceplate
($125)

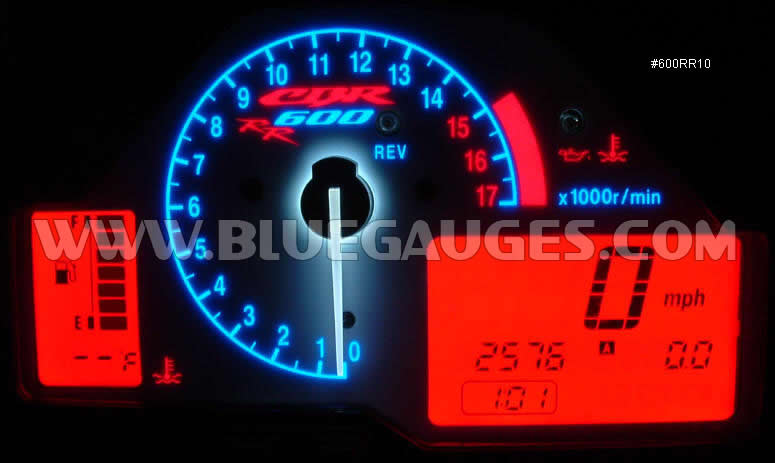

#600RR10
#600RR10
Red LCD's and white under the
tachometer (to give it a white needle) and
a "reverse" style illumiglo faceplate
($125)

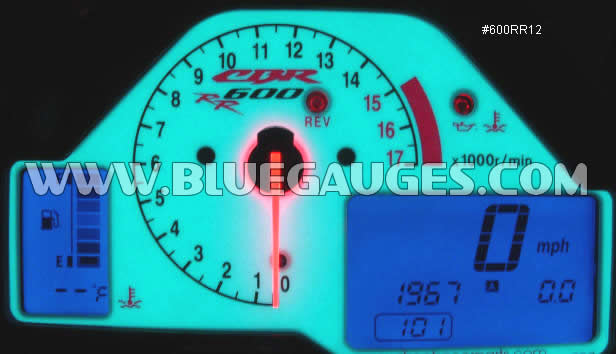

#600RR12
#600RR12
Blue LCD's and red under the
tachometer (to give it a red needle) and
a "standard" style illumiglo faceplate ($125)

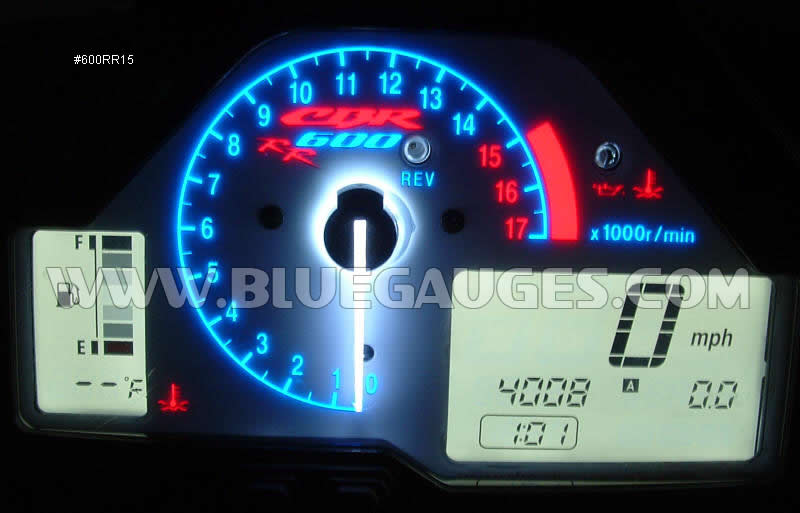

#600RR15
#600RR15
All white lighting and a "reverse"
style illumiglo faceplate ($125)

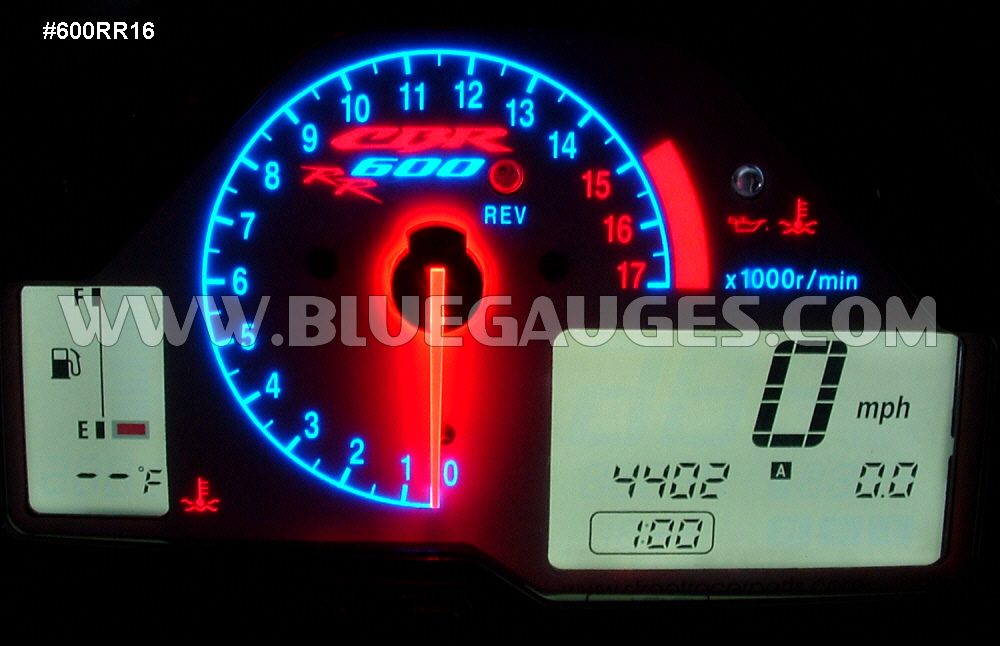

#600RR16
#600RR16

White LCD's with red under tach (for a red needle) and a "reverse" style illumiglo faceplate ($125)





Colored Faceplate Combos:

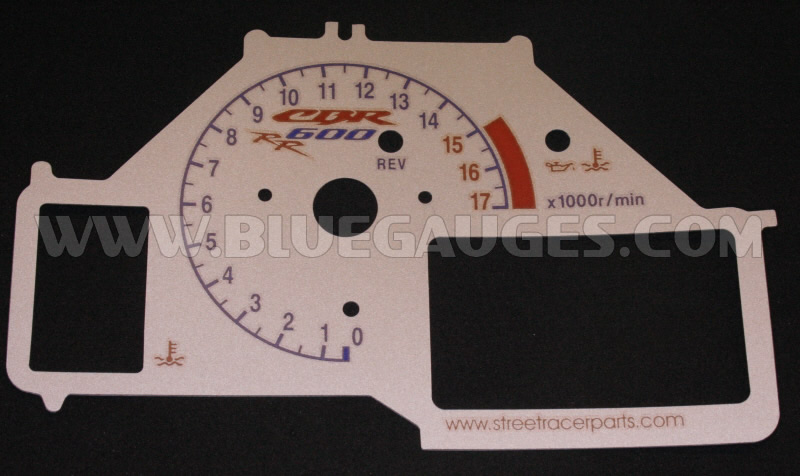

SILVER

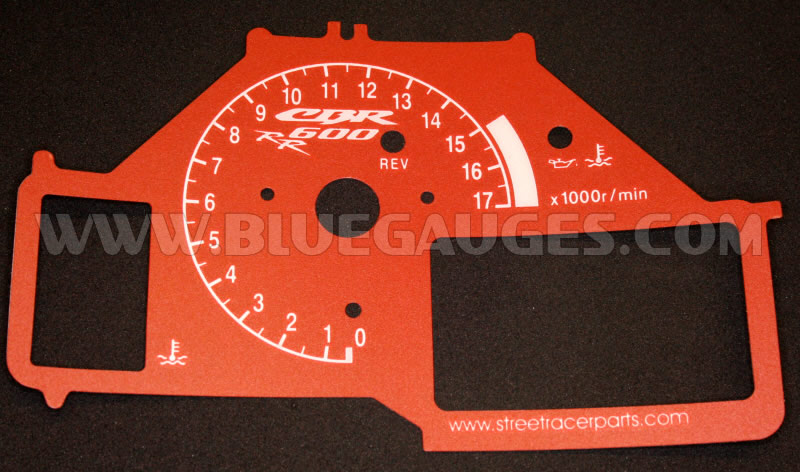

RED

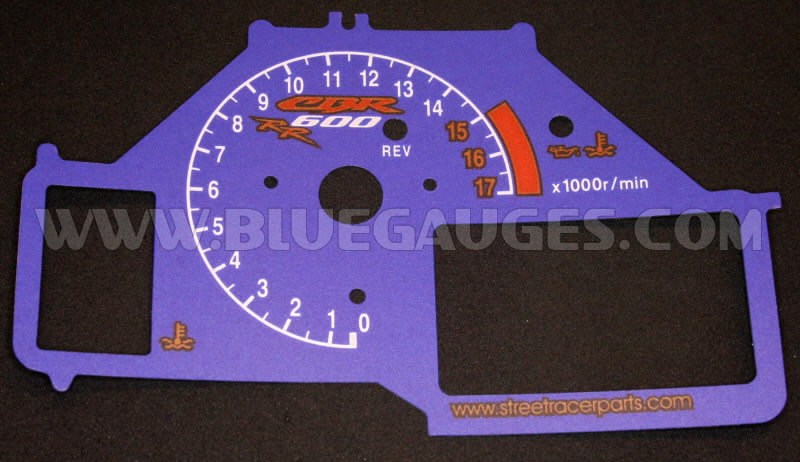

BLUE

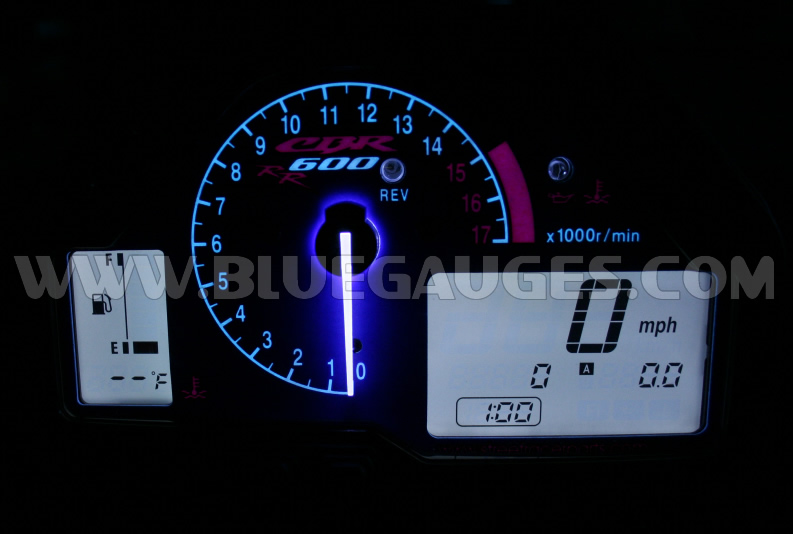

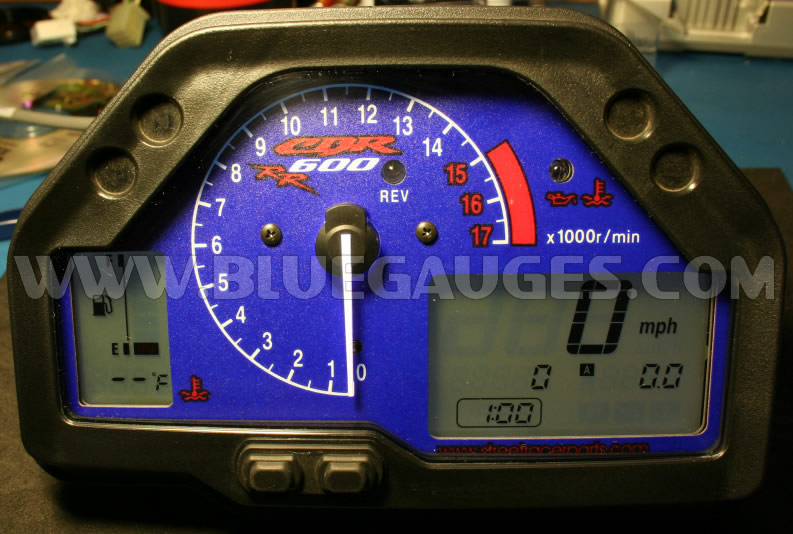

#600RR17B

All white lighting and a blue "reverse" style illumiglo faceplate ($125)
(Click for day/night rollover photo)



  • We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find equal LED's without a huge minimum purchase./
  • Lifetime warranty on all backlighting for as long as you own the vehicle.
  • Lifetime warranty on faceplates (If we do the installation only).
  • No risk of damaging your gauge cluster.
  • Your choice of colors.
  • Colors can be combined for different effects.
    • This gauge can have up to 3 separate colors. One in each LCD and one for the tachometer.
  • Additional Info
    • Gauges removal instructions
    • Power on self test video (1.6 MB .AVI)
    • Top Indicated speed
      • 2003-2006 = 180
      • Calibrations:
        • Tach: 100Hz = 3000 RPM
        • Speedo: 1000Hz = 63 MPH
    • All CBR600RR gauges are interchangeable among different years, There are no differences between years that we know of.
      • Note: Canadian spec gauges show km/h by default but can switch between km/h and mph (the temp always reads in C) reprogramming will make them read mph by default (but still switchable) and the temp in F.
    • Useful Honda OEM Part #'s
      •  Upper case: 37610-MEE-641
      •  Lower case: 37620-MEE-701
      • Button extensions: 37112-MEE-641 (x2)
      • Case screws: 93903-22480 (x8)

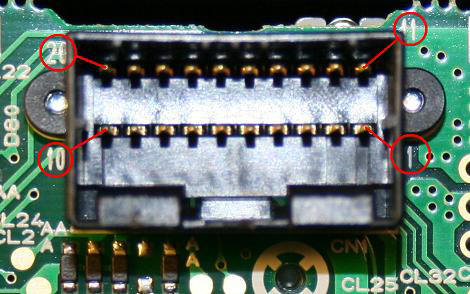

    • Pinouts
    • Wikipedia Info
  • Shipping Info

Other options:


"REV" Indicator
$5.00 (Stock=Yellow)
Select color

LCD Reversal
$40.00
(Sample Image)

Oil / Water Temp Indicator
$5.00 (Stock=Red)
Select color

Neutral Indicator
$5.00 (Stock=Green)
Select color

High Beam Indicator
$5.00 (Stock=Blue)
Select color

Turn Signal Indicators
$10.00 (Stock=Yellow or Green)
Select color
Illumiglo Faceplates Available!

(More Information)

Mileage Correction Available

(More information)


Express Mail Shipping Upgrade

(Priority mail return shipping is included in the price.
This option is only if you want it shipped faster.)

$25.00 (Usually overnight)


HISS Indicator
(Foreign Models Only)
$5.00 (Stock=Red)
Select color
