Suzuki GSX-R 600 (01-03)
Suzuki GSX-R 750 (00-03)
Suzuki GSX-R 1000 (01-02)


Stock Color

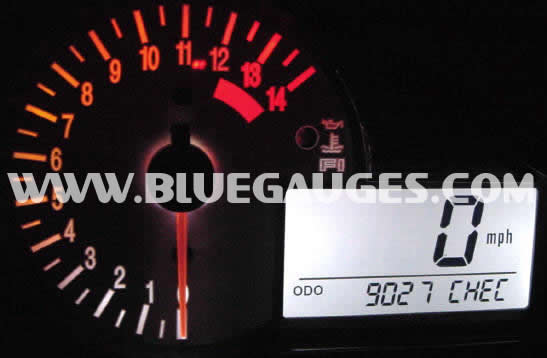

#GSXR102

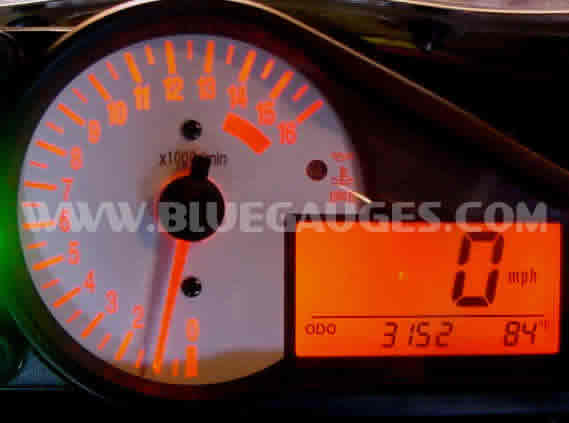

#GSXR102
White to yellow to orange
to red fade. ($55)

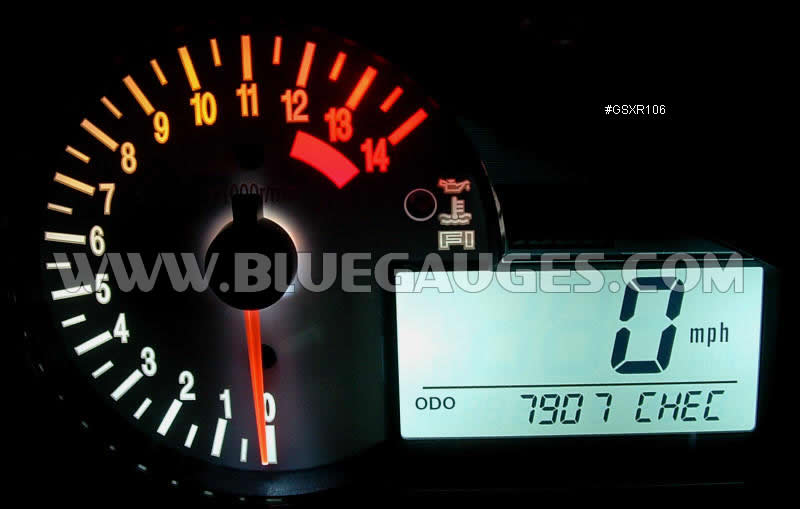

#GSXR106

White to yellow to red fade.
($55)

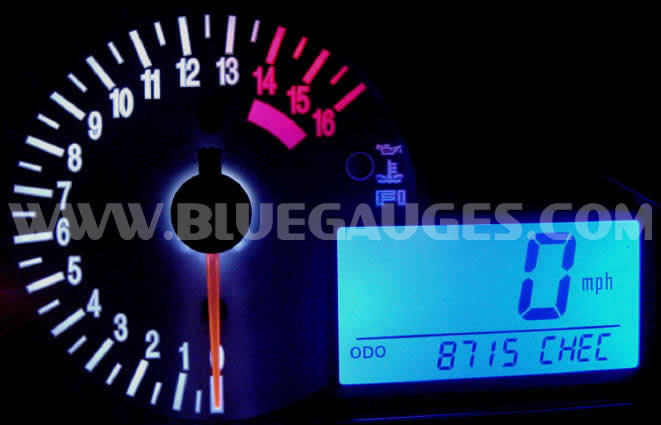

#GSXR103

White tach, blue LCD, and red under the redline.($55)

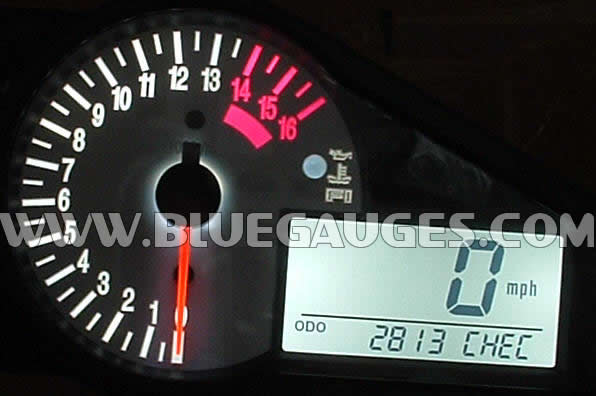

#GSXR104

All white ($55)

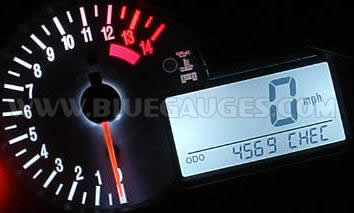

#GSXR105

All white with red under the redline ($55)

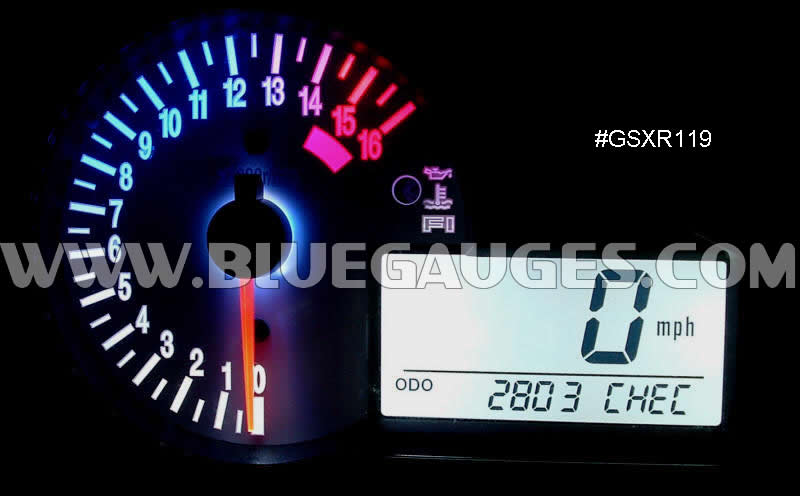

#GSXR119


White/blue tach, red
under the redline
and white LCD ($55)

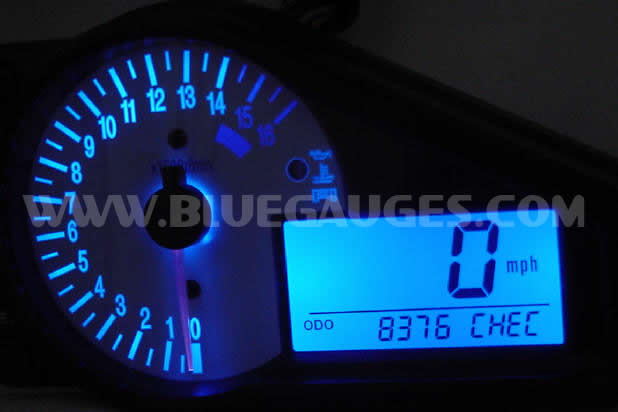

#GSXR112
All blue ($55)

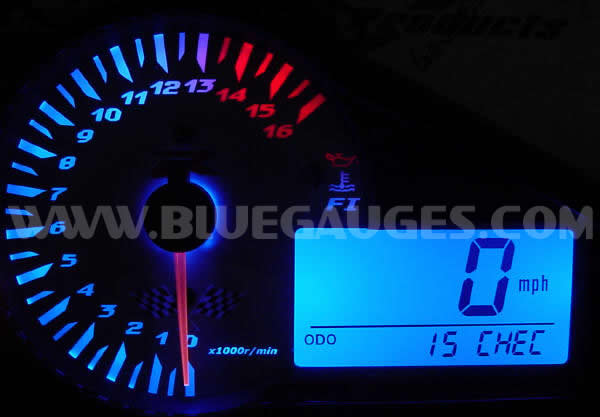

#GSXR114

All blue, red under the redline, and a mototeck faceplate ($95)
(Click here for faceplate colors)

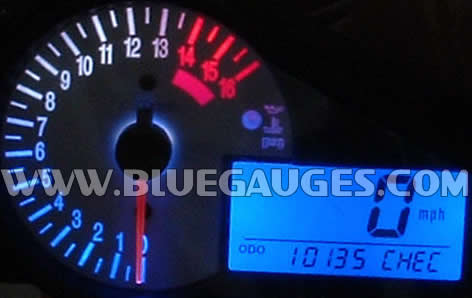

#GSXR115


Blue/white tach, red
under the redline
and blue LCD ($55)

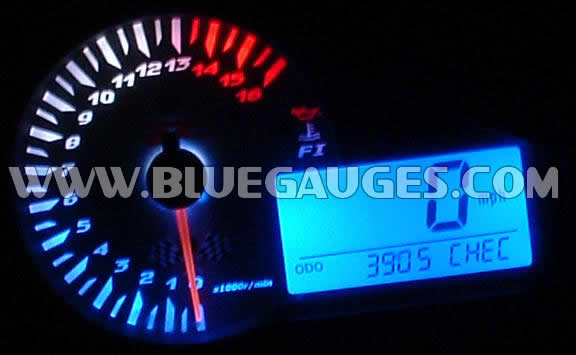

#GSXR116

Blue/white tach, red under the redline, and a mototeck faceplate ($95)
(Click here for faceplate colors)

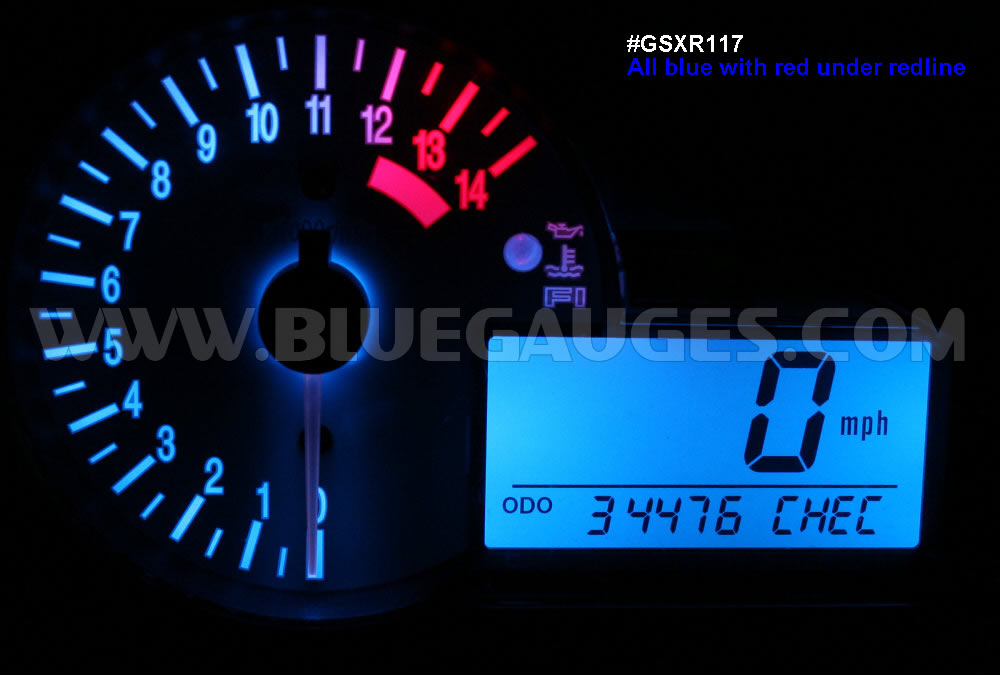

#GSXR117


All blue with red under the
redline ($55)

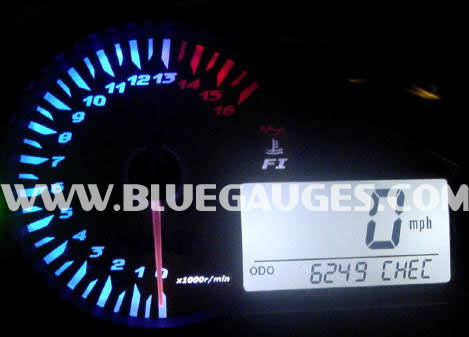

#GSXR101

Blue tach, red under the redline, white LCD, and a yellow mototeck faceplate ($95)
(Click here for faceplate colors)


#GSXR119

White/blue tach, red
under the redline
and white LCD ($55)

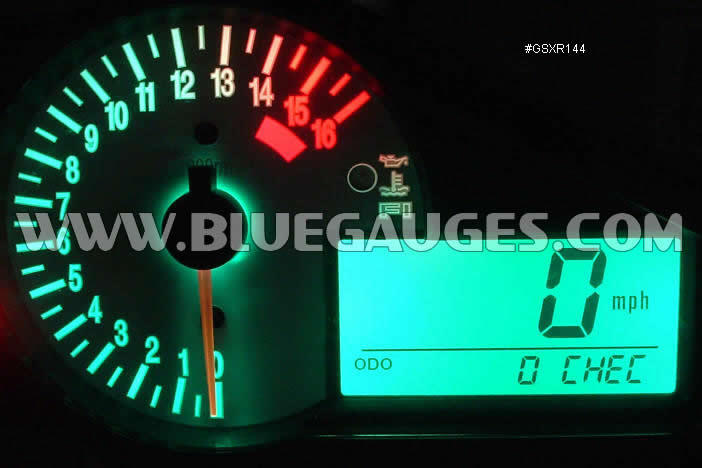

#GSXR144

All Blue-Green ($55)

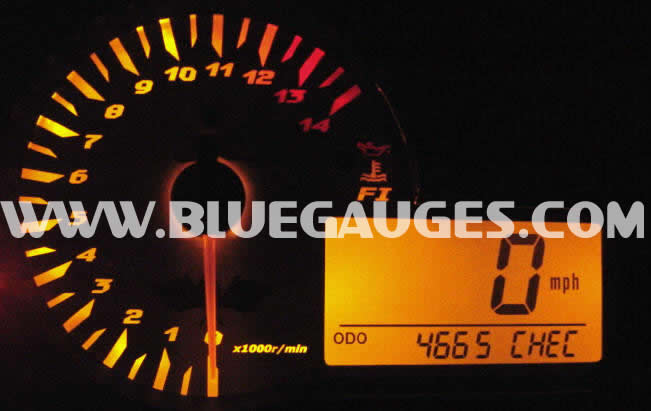

#GSXR122

All yellow with red under
the redline ($40)

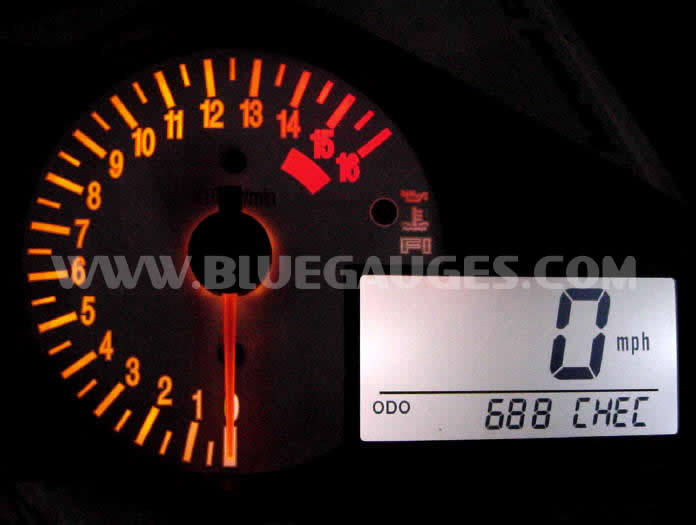

#GSXR123

Yellow tach, red under the redline
and a white LCD ($45)

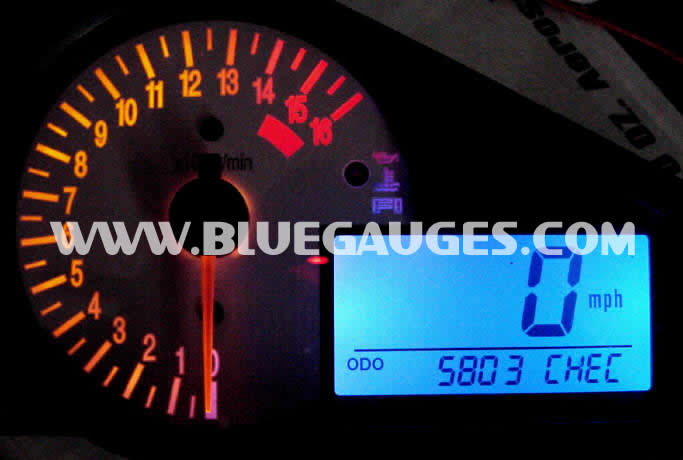

#GSXR125

Yellow tach with red under the redline and a blue LCD ($45)

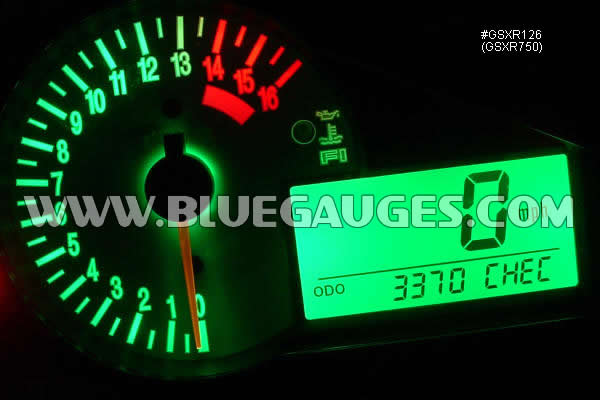

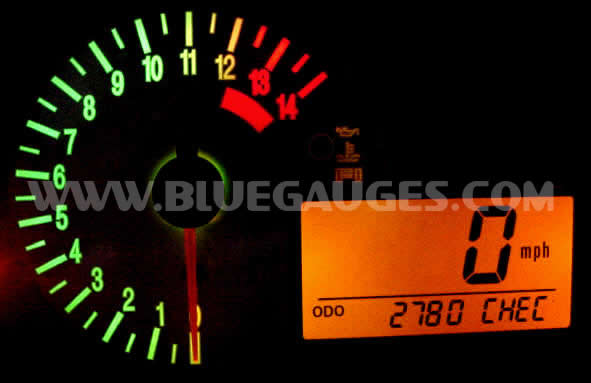

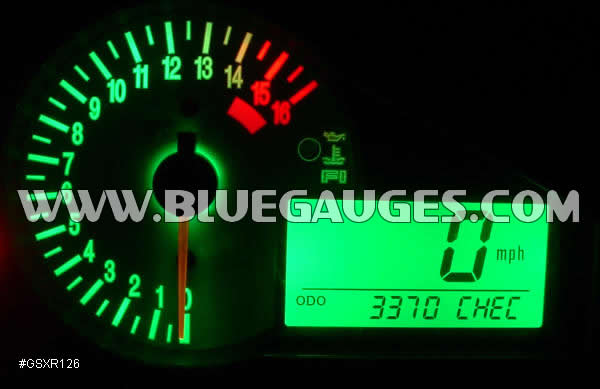

#GSXR126 #GSXR127

Green tach with red under the
redline and yellow LCD ($55)

(GSXR 600)

(GSXR 750)
All green with red
under the redline ($55)

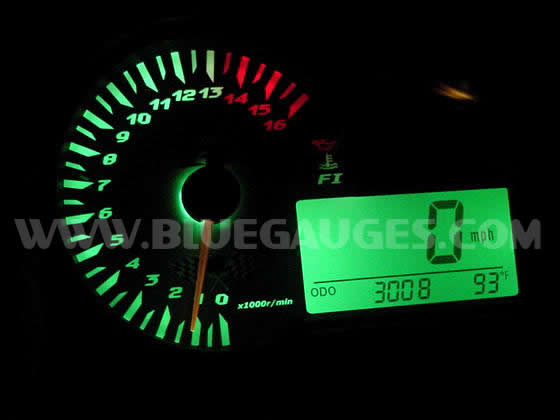

#GSXR128

All green with red under the redline,
and a mototeck faceplate ($95)
(Click here for faceplate colors)

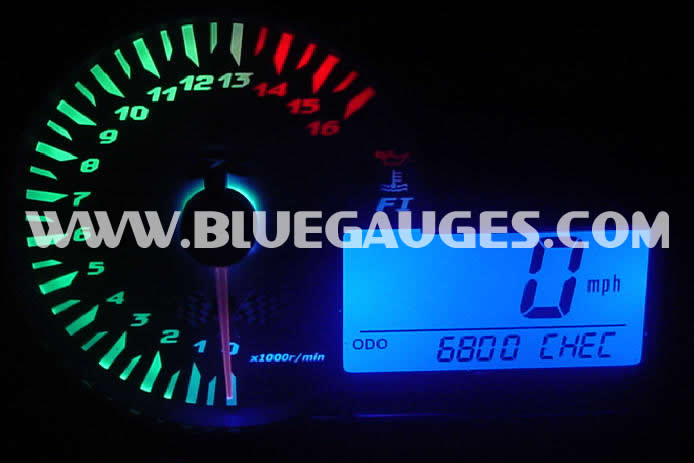

 #GSXR129

 Green tach with red under the redline,
and a mototeck faceplate ($95)
(Click here for faceplate colors)

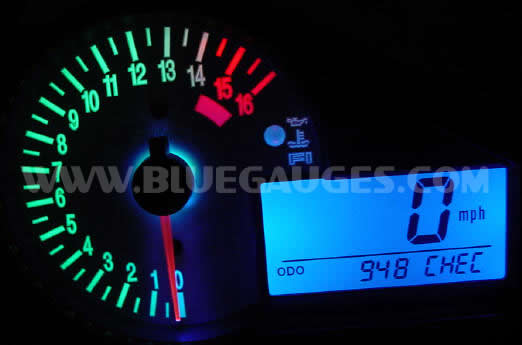

#GSXR130

 Green tach, red under the redline,
and blue LCD ($55)

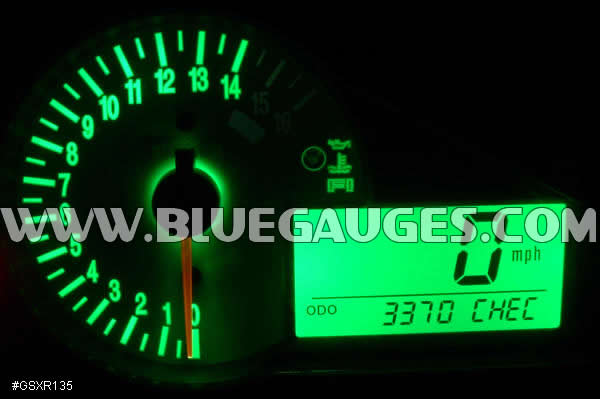

#GSXR135

All green ($55)
 (Not recommended because of dark redline area)

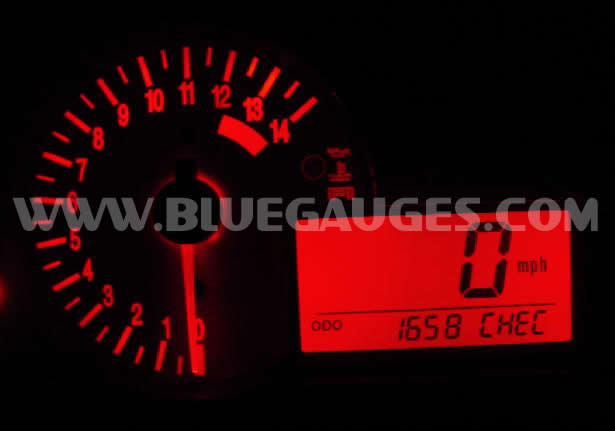

#GSXR131

All red ($40)

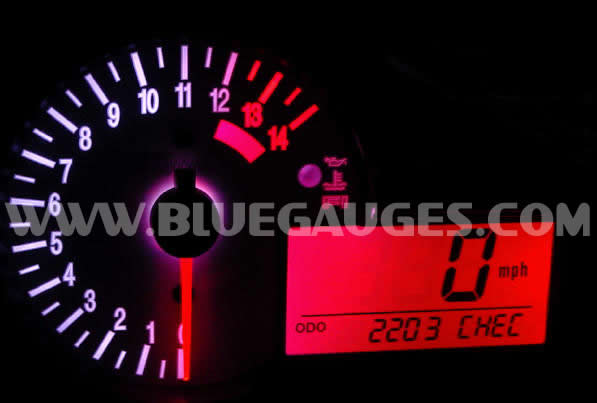

#GSXR132

White tach, red under redline
and red LCD ($50)

All prices include return shipping by priority mail
(express mail is optional) and "Plug & Play" installation of the
faceplate directly onto the circuit board inside the gauges.

GSXR 1000 FACEPLATES ARE TEMPORARILY OUT OF
PRODUCTION DUE TO LOW DEMAND.

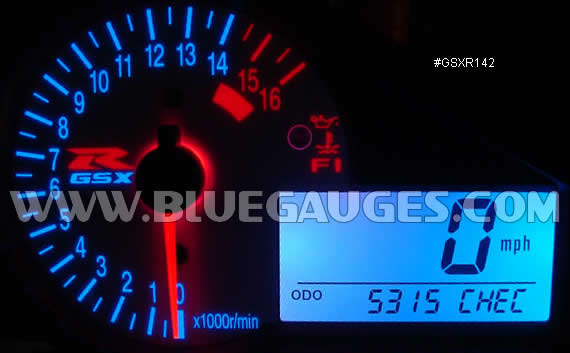

#GSXR142

Blue LCD with red under the
tachometer (for a red needle) and
a "reverse" style illumiglo faceplate ($130)

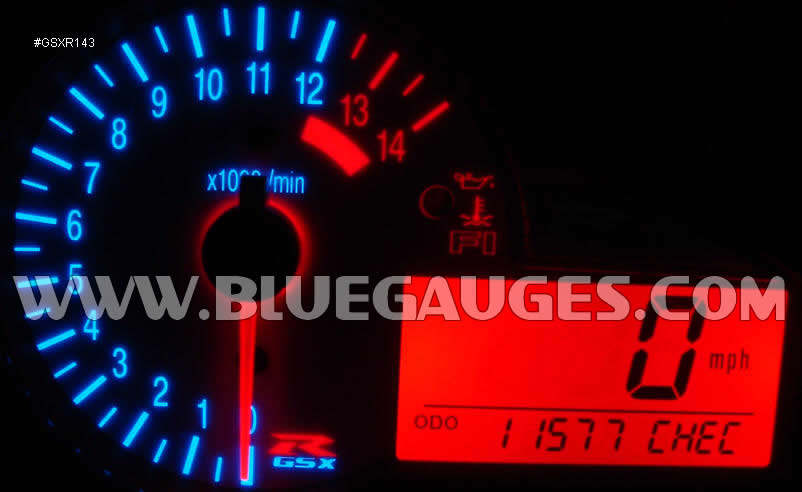

#GSXR143

Red LCD with red under the
tachometer (for a red needle) and
a "reverse" style illumiglo faceplate ($130)

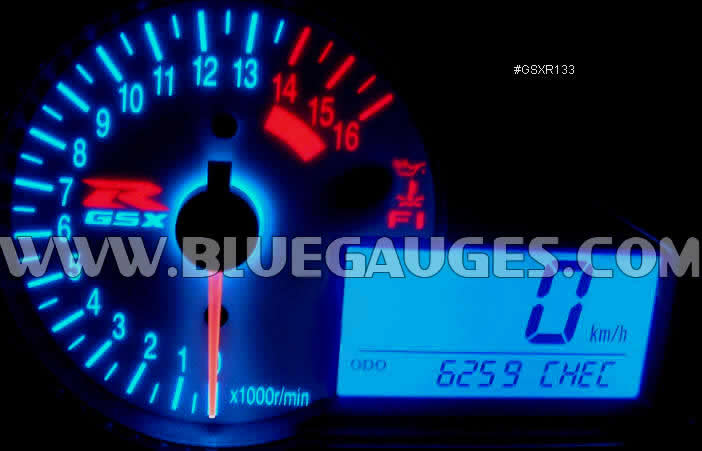

#GSXR133

All blue lighting and a "reverse" style
illumiglo faceplate ($130)

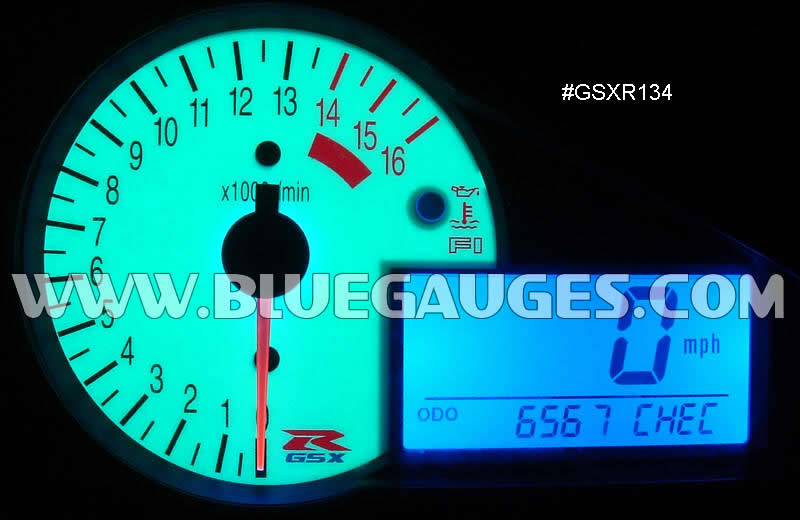

#GSXR134

All blue lighting and a "regular" style
illumiglo faceplate ($130)


  • We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find brighter LED's without a huge minimum purchase.
  • Military quality soldering.
  • No risk of damaging your gauge cluster.
  • Your choice of colors.
  • Colors can be combined for different effects.
  • Modified and shipped within 24-48 hours.
  • Shipping Info
  • Additional Info:
    • How to remove your cluster
    • To change from km/h to mph, or from mph to km/h (US models only):
      •  Repeatedly press the bottom button until the odometer is displayed. Then, while holding bottom button, press and hold the top button until the display switches modes.
        Note: we can reprogram metric style gauges to US spec. (more info)
    • Top indicated speed:
      • 2000 750 = 220 mph
      • 2001-2003 750 = 186 mph
      • 2001-2003 600 = 186 mph
      • 2001-2002 1000 = 186 mph
    • Tach ranges:
      • 01-03 GSXR 600 has redline from 14.5k to 16k
      • 00-03 GSXR 750 has redline from 14k to 16k
      • 01-02 GSXR 1000 has redline from 12.5k to 14k
    • Due to different specs on each model, most of the gauges are different in one way or another and are not 100% interchangeable with the other models. The most notable difference is the fuel light which was redesigned between 01 and 02 and will cause problems with the indicator if swapped. Also, 600 and 750 gauges use different pulse counts to determine speed and will not read speed correctly if swapped.
    • Only the following gauges can be swapped without problems:
      • 2002 and 2003 GSXR 600 are the same
      • 2002 and 2003 GSXR 750 are the same
      • 2000 and 2001 GSXR 750 are not the same but are
        interchangeable - the only difference is top indicated speed.
    • Note: In some instances, we can reprogram some gauges to match a different bike's specifications. E-mail us for more info. (mileage correction page)

Note: This is a service, you must package and ship the gauge cluster to us to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (
Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.

Other options:


Custom High Beam Indicator
$5.00 (Stock=Blue)
Select color

Custom Low Fuel Indicator
$5.00 (Stock=Orange)
Select color

Custom Turn Signal Indicator
$5.00 (Stock=Green)
Select color

Custom Neutral Indicator
$5.00 (Stock=Green)
Select color

Custom FI/Oil Indicator
$5.00 (Stock=Red)
Select color

Colored Faceplates Available!

View colored faceplates



Mileage Correction Available!

(More information)


Illumiglo Faceplates Available!

View illumiglo faceplates


Express Mail Shipping Upgrade

(Priority mail return shipping is included in the price.
This option is only if you want it shipped faster.)

$25.00 (Usually overnight)
